Yoshitake

Safety Valve AL-5 for Steam 15 Bar, Flange 3/4" ~ 2" hand lever

Type : Steam
Set Pressure : Steam - 0.5 ~ 15 Kg/Cm2
Temperature : 220 C
Size : 3/4" ~ 2"
Connection : Flange JIS 16K
Body : Ductile Iron
Trims : Stainless Steel

Yoshitake AL-5 is for Critical application whereby occasional Blow Down is required to make sure Disc does not stick at the Seat. Another use of Hand Lever is to blast away dirt from the Trims due to Dirty steam.
https://www.yoshitake-inc.com/prod/product?no=170

Safety Valve AL-5 for Steam 15 Bar, Flange 3/4" ~ 2" hand lever - Yoshitake - Gamako


Share this product


Related Products

Yoshitake

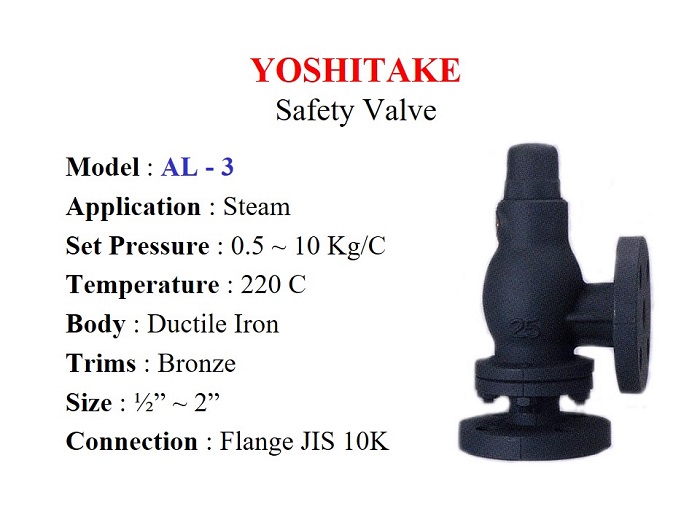

Obsolete Product : Safety Valve AL-3. New Model AL-300

Obsolete product.
Yoshitake

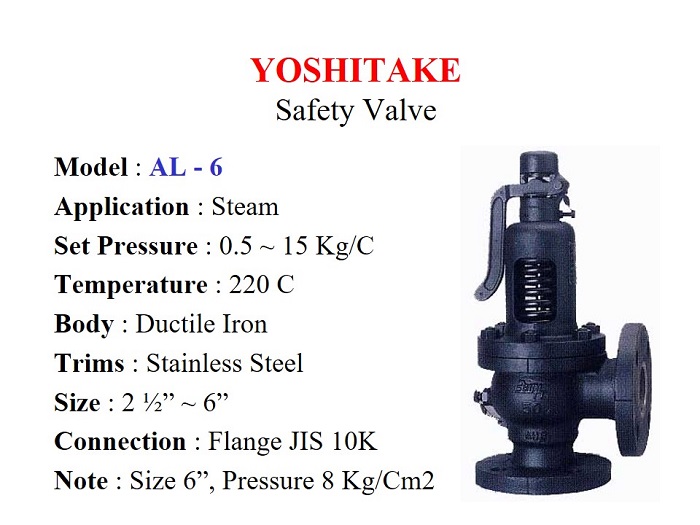

Safety Valve AL-6 for Steam 15 Bar, Flange 2.1/2" ~ 6" hand lever

Yoshitake AL-6 is the extension of AL-5 with larger size. Hand Lever for Testing and Maintenance.
Yoshitake

Safety Relief Valve AL-150 for Steam, Air, Water, Oil 10 Bar, Screw 1/2 ~ 2

Yoshitake AL-150 is a must to be installed downstream of PRV station as a Safety to protect costly Equipment in the event PRV is damaged resulting in increase of pressure. AL-150 is Compact and can be used for Steam and Liquids ( Consider allowable Leakage due to Metal Seat ). Replaces old model AL-1, AL-15, AL-160.
Yoshitake

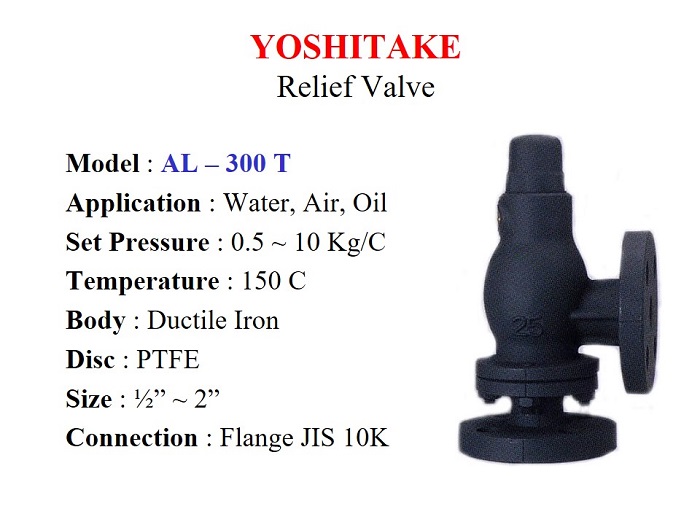

Relief Valve for Water, Oil, Air AL-300T series / 10 Bar, Flange 1/2" ~ 2"

Yoshitake AL-300T is Soft Seat relief valve ideal for Tight Shut-Off used for Water & Air.
Mihana Seisakusho

Safety Valve - Series SA100 / Full Bore for General Purpose

Mihana Seisakusho is one of Japanese top maker of Safety Relief Valve for General and Process use. Cover wide range of Materials, Pressure Rating, Size & Connection.
Mihana Seisakusho

Relief Valve - RB101 / Lift Type Adjustable Setting

Mihana Seisakusho is one of Japanese top maker of Safety Relief Valve for General and Process use. Cover wide range of Materials, Pressure Rating, Size & Connection.
